Description
Product Description

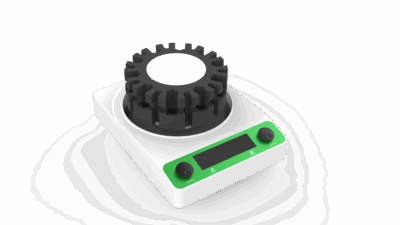

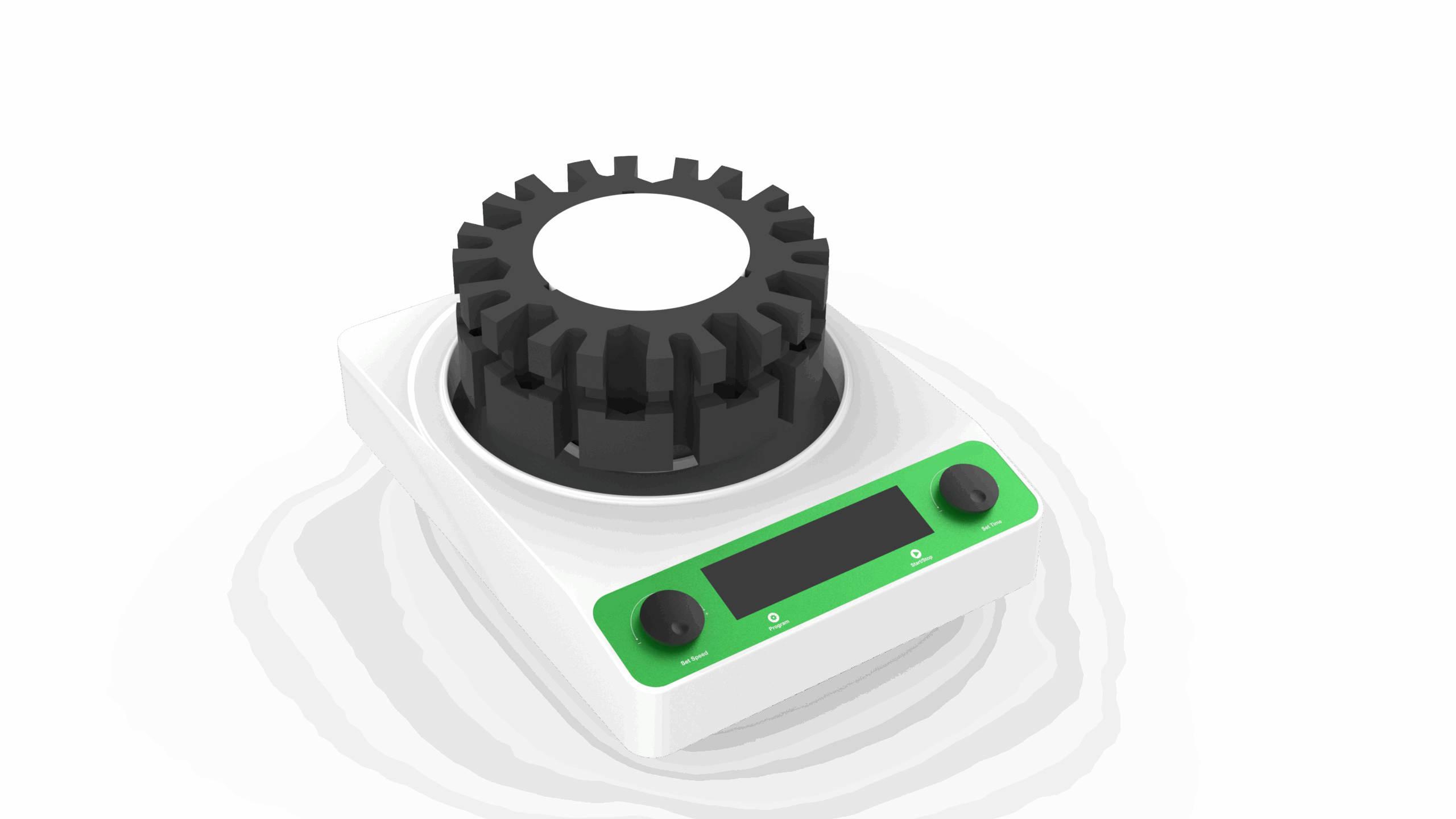

The Multi-Tube Vortex Mixer is a laboratory device designed for efficient sample pretreatment, facilitating liquid-liquid and solid-liquid mixing. Its powerful vortex action is also effective for high-viscosity samples.
The Multi-Tube Vortex Mixer accommodates tubes of various volumes and is ideal for multi-tube vortexing. It is primarily used for sample pretreatment in applications such as pesticide residue analysis, veterinary drug testing, additive detection, mycotoxin analysis, and environmental testing.
Features
Convenience: Secured with an elastic band for easy tube placement and clear observation of the vortex effect.
High Speed: Reaches up to 2800 rpm for thorough sample mixing.
Intelligence: Stores up to four programs with preset vortex time and speed.
User-Friendly: Press-button design enables effortless operation, even with cotton gloves or wet hands.
Compatibility: Offers three carousel attachment options to accommodate different tube sizes.
Specification
| Speed Range | 0–2800 rpm |
| Timing | 1–1999 minutes |
| Memory | Stores up to 4 programs with preset vortex time and speed, with one-button start |

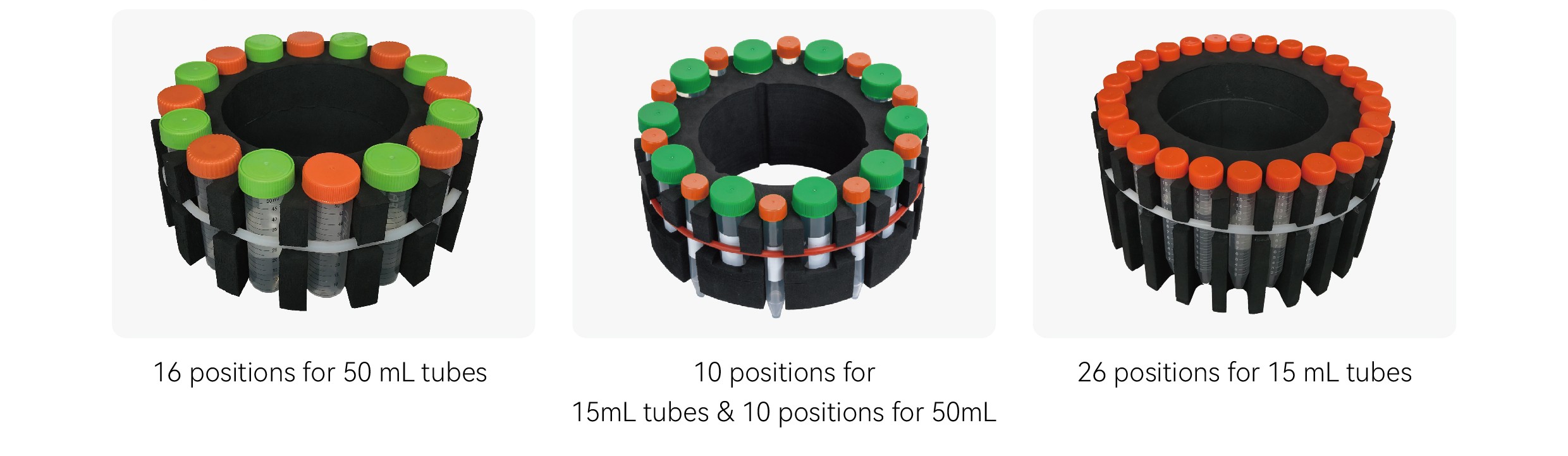

| Carousel Accessories | Standard: 20 positions (10 for 15mL tubes (10–16 mm diameter) + 10 for 50mL tubes (16–32 mm diameter)) |
| Optional: 26 positions for 15mL tubes (10–16 mm diameter) | |
| Optional: 16 positions for 50mL tubes (16–32 mm diameter) | |
| Customisable |
Accessories
| Ingress Protection | IP20 |
| Maximum Load | 2.1 kg |
| Settings | Digital display with adjustable speed and time |
| Orbit | 3 mm |
| Accessories | Multi-tube holders, elastic band |
| Electrical Safety | Overload protection with automatic power shutdown |
| Working Environment | 5–35°C, relative humidity up to 80% |
| End Alarm | Yes |
| Safety Leakage Port | Yes |
| Electrical Requirements | AC 110–220V, 50/60Hz |
| Power | 60 w |
| Dimensions (L x W x H) | 320 × 474 × 208 mm |
| Weight | 18.8kg |
